KB-M3-02

Experience a World-First in Networking Technology with Our MoCA 2.5 Adapter!

We’re proud to introduce a global innovation: the only MoCA 2.5 Adapter on the market with dual 2.5GE ports! No other product worldwide offers this level of connectivity and performance—giving you a unique edge in home networking.

Why settle for less when you can have exclusive, high-speed wired connections for multiple devices? With 2.5 Gbps speeds and our dual-port design, this adapter transforms your existing coaxial lines into a robust, high-performance network. Ideal for 4K streaming, online gaming, and bandwidth-intensive applications, it ensures you never have to compromise on speed or stability.

Key Benefits:

World’s Only Dual 2.5GE Ports: Enjoy unparalleled flexibility and high-speed connectivity across multiple devices.
Exceptional Reliability: Consistently fast and stable connections, even under heavy data loads.

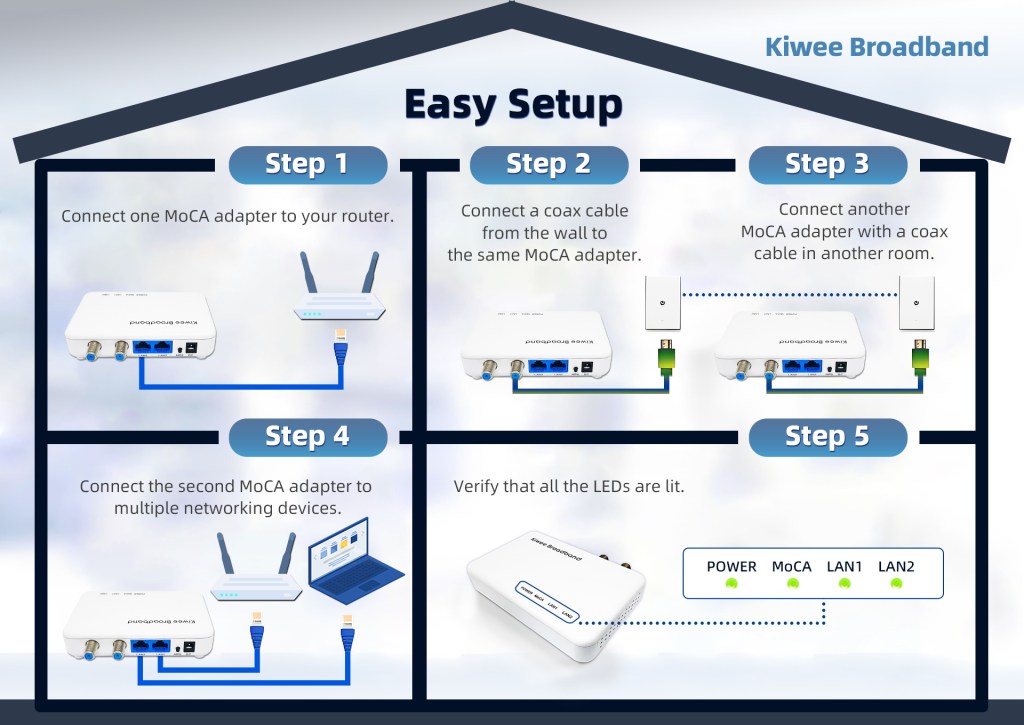

Simple Installation: Just plug it in—no need for additional cables or complex configurations.

Take advantage of this world-first technology and set a new standard for home networking. The MoCA 2.5 Adapter with dual 2.5GE ports is here to redefine connectivity for the modern home.

Get ready to experience what only we can offer!

🛠️ Why Two Ports Matter

Discover how a dual-port MoCA adapter can simplify your setup and boost your network performance.

👉 Learn more

Tech Specs

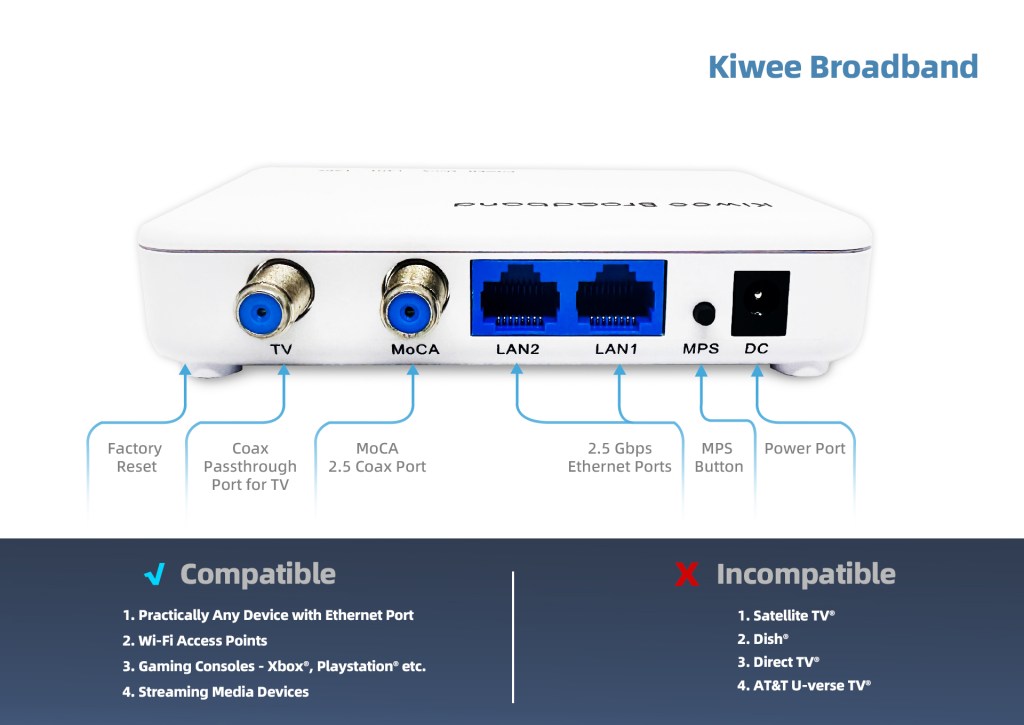

INTERFACES:	– Two 10/100/1000/2500 Base T Ethernet LAN – One MoCA 2.5/2.0/1.1/1.0 Coaxial Jack （1125MHz~1675MHz） – One TV Coaxial Jack （5MHz~1002MHz） – One MPS Pairing button – One Reset Push button
NETWORK SIZE:	– Up to 16 Devices (including NC)
CHIPSETS:	– MaxLinear MxL3710 – MaxLinear GPY211
REGULATORY:	– FCC, CE – UL

User Manual

English User Manual

Other languages user manuals are available below:

Firmware

1.18.13.5 Based on Maxlinear SDK v1.18.13

1.18.13.54 Special firmware to turn off LAN port LEDs while keeping a soft MoCA LED—ideal for bedrooms or low-light spaces. Enhances comfort by eliminating distracting lights without losing network status. Download now for a quiet, sleep-friendly MoCA experience. Based on Maxlinear SDK v1.18.13

🛒 BUY NOW ON AMAZON

⭐️⭐️⭐️⭐️⭐️ “Verified 4.7-star reviews on Amazon”
Read customer reviews →

FAQ

► What makes this MoCA adapter different from other brands?

This is the world’s first and only MoCA 2.5 adapter with dual 2.5 Gigabit Ethernet ports, allowing you to connect two high-speed devices simultaneously at full 2.5 Gbps speeds – a unique feature no other adapter offers.

► What real-world speeds can I expect from this adapter?

Real testing with iperf shows consistent 2.5 Gbps speeds under optimal conditions.

► Is this adapter compatible with DOCSIS 3.1 cable modems?

Yes, but some DOCSIS 3.1 modems may require configuration. Access the adapter’s GUI at 192.168.144.200, change to “D-band High only” mode, and set LOF (Lowest Operating Frequency) to 1400 MHz to avoid interference with DOCSIS 3.1 frequencies.

► Can I use both 2.5G ports simultaneously at full speed?

Yes, both ports can run at 2.5 Gbps simultaneously, sharing the total MoCA 2.5 bandwidth of approximately 3 Gbps. This is perfect for connecting a router and high-speed device, or two separate network segments.

► How much latency does this adapter add for gaming?

The adapter adds only 3-4 milliseconds of latency, making it excellent for competitive gaming and real-time applications. This is significantly lower than WiFi alternatives.

► Will this work with my mesh WiFi system for wired backhaul?

Absolutely. This adapter is ideal for mesh WiFi backhaul, providing stable wired connections that significantly improve mesh performance compared to wireless backhaul. Compatible with Ubiquiti, Eero, Orbi, and other mesh systems.

► Can I mix this adapter with other MoCA brands in my network?

Yes, it’s backward compatible with MoCA 1.1, 2.0, and 2.5 standards and works with other brands like GoCoax, Actiontec, and ScreenBeam. Network speed will be limited by the slowest adapter connected.

Tutorial Videos

►Configure MoCA in D-Band High to Eliminate DOCSIS 3.1 Interference

Improve MoCA performance by shifting to D-band High (1350–1675 MHz) to avoid overlap with DOCSIS 3.1 modems/routers that reach up to 1218 MHz. This guide walks you through updating all MoCA devices to the same D-band High setting and LOF values to ensure a solid, interference-free connection.

Steps:

Locate MoCA settings on each adapter via web interface
Change the frequency band to D-band High (1350–1675 MHz).
Apply the 1400Mhz LOF value on every MoCA device
Repeat steps 1–3 for all MoCA adapters in the network.
Restart each device to apply the new settings.
Reconnect all equipment and verify that MoCA link lights are solid and network performance is stable.

Tips:

If a device remains on the old band, recheck the configuration on that unit and reapply settings.

Ensure all adapters use the same band and LOF values; a mismatch can prevent links from coming up.

►Check MoCA Adapter Firmware and Link Rate for Stable Performance

When issues arise, verify the MoCA adapter’s firmware version and link rate. The link rate indicates the stability and reliability of the MoCA connection, so give it close attention. A healthy link rate is typically around 3500 Mbps.

►Switch MoCA Adapter from Static IP to DHCP for Automated Management

Some users prefer the MoCA adapter to obtain its management IP address via DHCP. This guide provides clear, step-by-step instructions to enable DHCP on the MoCA device, improving network flexibility and ease of management.

►Enable MoCA Traffic Security Protection Across Your Network

Activating the Security feature protects data transmitted over the MoCA network from unauthorized devices. All MoCA devices on the network must support and enable this feature; older devices may not. MoCA 2.5 devices generally support it. Before enabling, verify the device types in your home to avoid connection failures.

Compare Models

Model Number	KB-M3-02	KB-M3-03	KB-M3-02E
MoCA Standard	MoCA 2.5	MoCA 2.5	MoCA 2.5
Frequency Band	D Band (1150–1650 MHz)	D Band (1150–1650 MHz)	E Band Extended (400–900 MHz)
Ethernet Ports	2 × 2.5GbE	1 × 2.5GbE	2 × 2.5GbE
Power over Ethernet (PoE+)	No	Yes	No
Max Throughput	Up to 2.5 Gbps	Up to 2.5 Gbps	Up to 2.5 Gbps
Compatibility	DOCSIS, CATV, MoCA D Band	DOCSIS, CATV, MoCA D Band	Satellite TV, MoCA E Band
Not Compatible With	Satellite TV, MoCA E Band	Satellite TV, MoCA E Band	DOCSIS, CATV, MoCA D Band
Typical Use Case	Multi-device, high-speed LAN	Single device, PoE-powered devices	Satellite TV homes, multi-device LAN
Installation	Plug & Play	Plug & Play, PoE simplifies power	Plug & Play
	Buy Now	Buy Now	Buy Now
